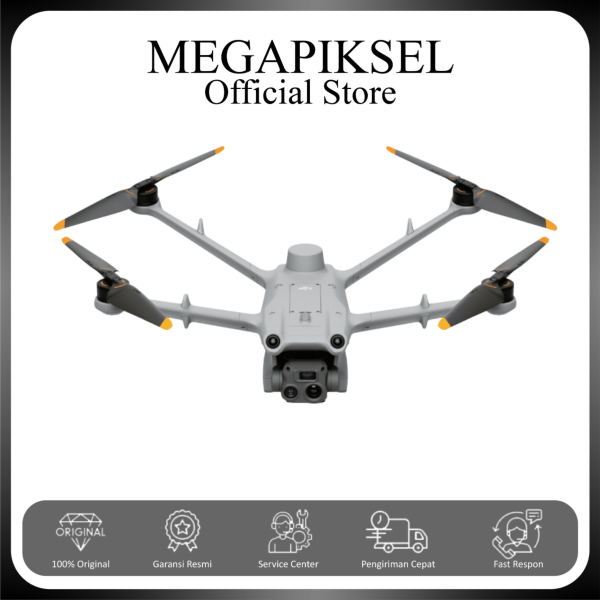

The DJI Matrice 3TD revolutionizes the world of professional drones. Designed specifically to work with the DJI Dock 2, it offers exceptional durability with an IP54 rating, making it dust- and water-resistant. Its impressive 50-minute autonomy and 10 km range maximize mission efficiency. What’s more, its integrated RTK module ensures centimeter-accurate positioning.
On the imaging side, the Matrice 3TD boasts three cameras: a large 48 MP camera with a 1/1.32″ CMOS sensor, a 162 mm telephoto camera and a 40 mm infrared camera offering up to 28x digital zoom. Its resolution reaches 1280 x 1024 in UHR mode, perfect for applications such as inspections, government services and security. With 6-way obstacle detection and 400 battery cycles, this drone is a top choice for demanding professionals.
| Specification | M3TD | M3D |
|---|---|---|
| Wide-angle camera | 1/1.32″ CMOS, 48MP | 4/3″ CMOS, 20MP, mechanical shutter |
| TV camera | 1/2″ CMOS, 12MP, 56x hybrid zoom | 1/2″ CMOS, 12MP, 56x hybrid zoom |
| Thermal camera | 640×512@30fps |
| Specification | M3TD | M3T | M30T DOCK VERSION |
|---|---|---|---|
| Weight (with battery) | 1410 g | 920 g | 3870 g |
| Size (deployed) | 335 x 398 x 153 mm | 347.5 x 283 x 107.7 mm | 470 x 585 x 246 mm |
| Maximum horizontal speed | 21 m/s | 21 m/s | 23 m/s |
| Maximum wind speed resistance | Operation: 12 m/s, Take-off/Landing: 8 m/s | 12 m/s | 12 m/s |
| Maximum flight time | 50 min | 45 min. | 40 min |
| Maximum hover time | 40 min | 38 min | 35 min |
| IP rate | IP54 | Not supported | IP55 |
| Temperature | -20°C ~ 45°C | -10°C ~ 40°C | -20°C ~ 50°C |
| Wide-angle camera | 1/1.32″ CMOS, 48MP | 1/2″ CMOS, 48MP | 1/2″ CMOS, 12MP |
| Zoom camera | 1/2″ CMOS, 12MP, 56x hybrid | 1/2″ CMOS, 12MP, 56x hybrid | 1/2″ CMOS, 48MP, 5x-16x optical zoom |
| Thermal camera | 640×512@30fps | 640×512@30fps | 640×512@30fps |
| Laser module | Not supported | Not supported | Supported |
| FPV camera | Not supported | Not supported | Supported |
