Easy Operation, Superior Results

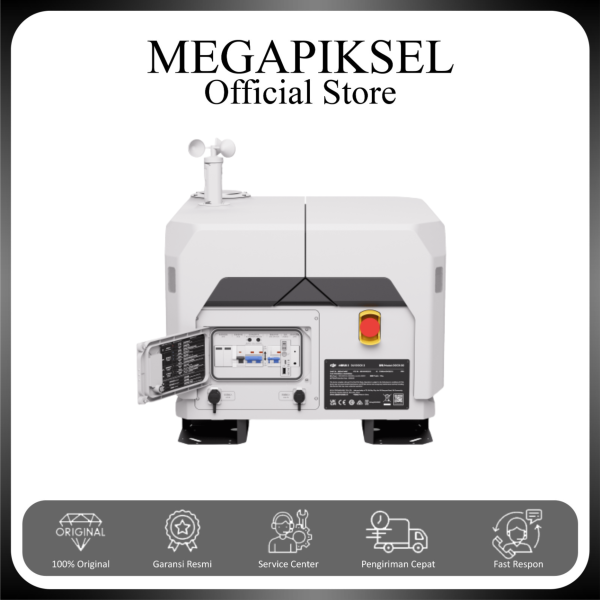

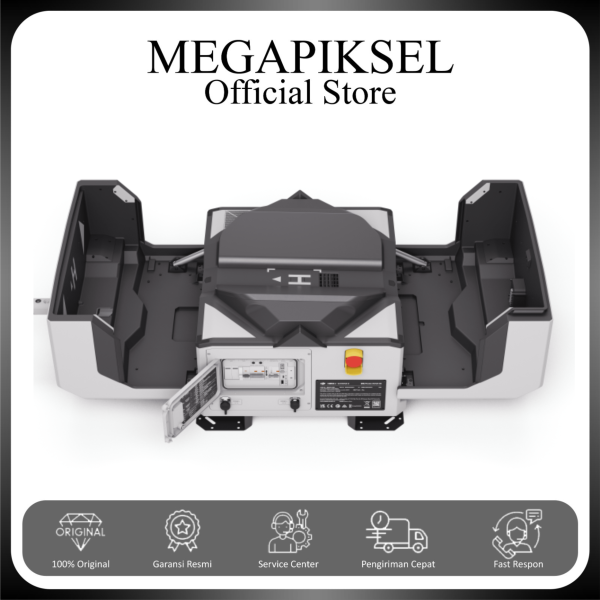

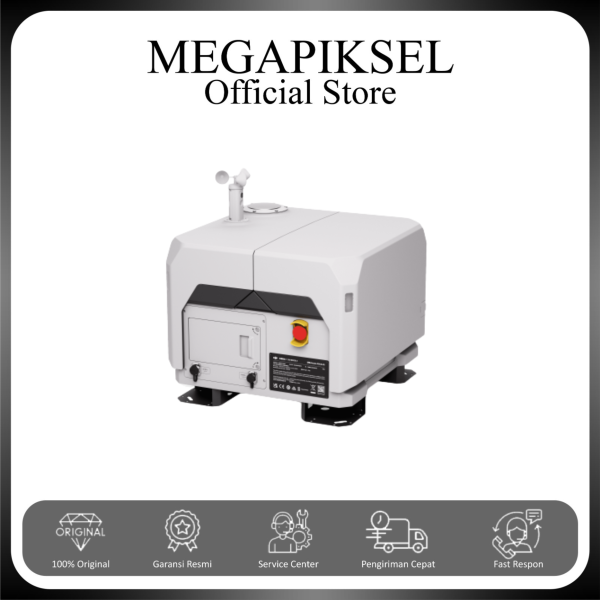

The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.
Lightweight and Easy
to Deploy
![IP55 Ingress Protection [1]](https://dji-official-fe.djicdn.com/dps/35753c97a0f26113ada28c899550696a.svg){kind=icon}
IP55 Ingress Protection [1]
![10km Max Effective Operating Radius [2]](https://dji-official-fe.djicdn.com/dps/68fbedf702719293ba0a08719f55b169.svg){kind=icon}
10km Max Effective Operating Radius [2]
Integrated Environmental Monitoring System
Cloud-Based Modeling
FlyTo Tasks
Private Deployment
![Third-Party Payload Support [3]](https://dji-official-fe.djicdn.com/dps/4d8d88b79182539b2b04ec6852831baa.svg){kind=icon}
Third-Party Payload Support [3]
Easy Deployment, Ready to Go
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. [4] This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less. [5]
Rugged, Reliable, Recharged
Built-In Backup Battery
In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours [6] with the built-in backup battery, leaving sufficient time for the aircraft to return and land.
Six-Month Maintenance Interval
With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, [7] effectively controlling human resource costs.
Abnormal Condition Notifications
If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.
High-Performance Aircraft Models
The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
Wide-Angle Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
Infrared Camera
40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps
(With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
28x Digital Zoom
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of
high-standard operations.
Dustproof and Waterproof [1]
IP54
Max Flight Time [8]
6-Directional
Obstacle Sensing System [9]
Max Effective Operating Radius [2]
10 km
Integrated RTK Module
±3cm Positioning Accuracy
Battery Cycles [10]
400
Steady Operation, Uncompromised Efficiency
Cloud-Based Operation, Maximum Control
Flight Route Editor
Utilizing high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. This facilitates intuitive and efficient operations and enhances flight route planning and accuracy.
FlyTo Tasks
DJI FlightHub 2’s FlyTo tasks utilize high-precision 3D models to automatically plan the optimal flight route. Before an urgent task, the operator only needs to click on the subject, and the aircraft will fly to the destination via an efficient and safe route.
Live Flight Controls
Based on DJI FlightHub 2 or a third-party cloud platform, even if
DJI Dock 2 is deployed in a remote region, the operator can still control the flight and gimbal angle via keyboard and mouse.
Obstacle Bypass
When performing automatic flight tasks, the aircraft utilizes omnidirectional obstacle sensing and automatic obstacle bypass functions to enhance the success rate of flight tasks.
Open Ecosystem
Extensive Capabilities
Third-Party Payloads
Add even more functionality, connect to third-party payloads [3] such as loudspeakers and spotlights via the aircraft’s E-Port, and remotely control added payload via DJI FlightHub 2. [13] Additionally, the aircraft’s E-Port Lite supports connection to a parachute [3] for increased flight and personnel safety.
Edge Computing
DJI Dock 2 has an edge computing expansion interface that enables the pre-processing of media files and more to improve operational efficiency further.
Private Deployment With Cloud API
Tailor a customized management system for DJI Dock 2 with Cloud API or quickly connect it to a third-party cloud platform, facilitating efficient and convenient private deployment.
Cloud-to-Cloud Coordination
Through DJI FlightHub 2’s FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of operation data.
DJI TerraAPI
With the DJI TerraAPI, users can now integrate the powerful mapping capabilities of DJI Terra into their own dock management systems. This enables automated 2D/3D reconstruction and customized photo mapping workflows, allowing the operation results of DJI Dock 2 to better meet the needs of a wide variety of industry applications.
