Autel Alpha Bundle Gimbal Camera L35T
- Stok sedikit - tersisa 1 item

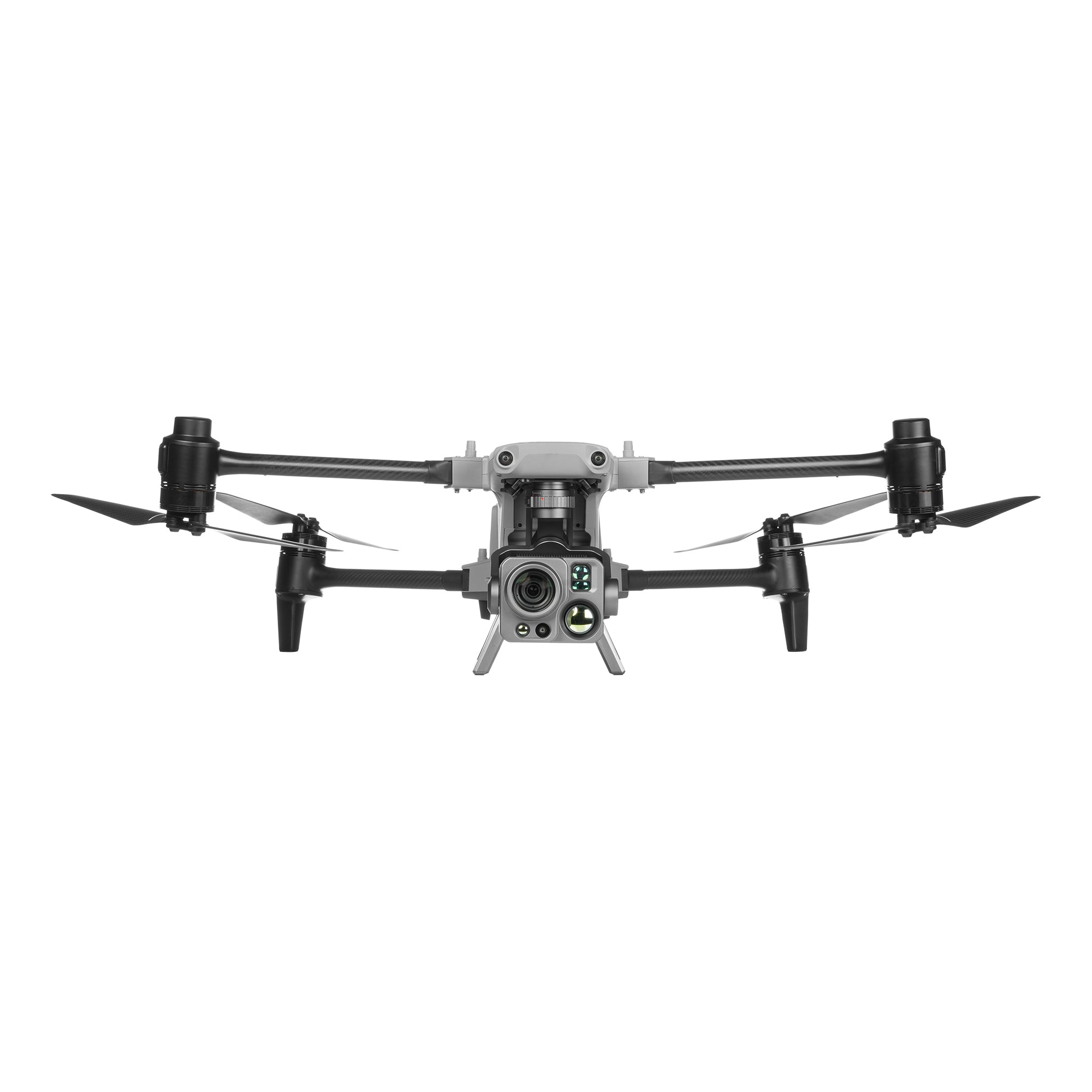

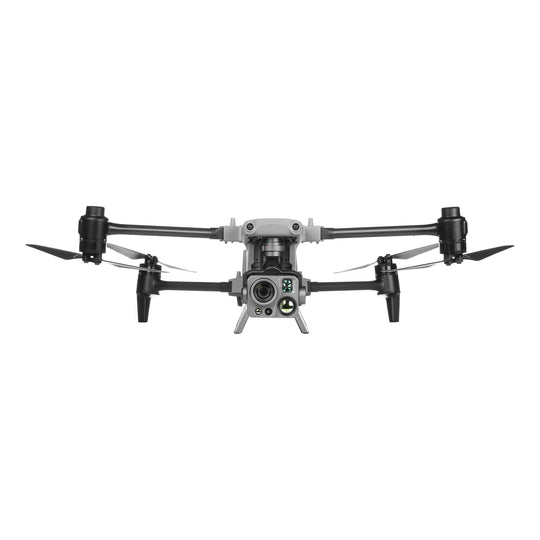

Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.
Superior Anti-interference
High-precision Visual Navigation
AI Target Recognition and Positioning
56x Dual Thermal Camera
4K 35x Optical Zoom
IP55 Rating
Hot-swappable Battery
Wire-Level Obstacle Avoidance and Pathfinding
15 Kilometers Video Transmission Range
Flexible Payload Expansion
Insight Beyond Limits

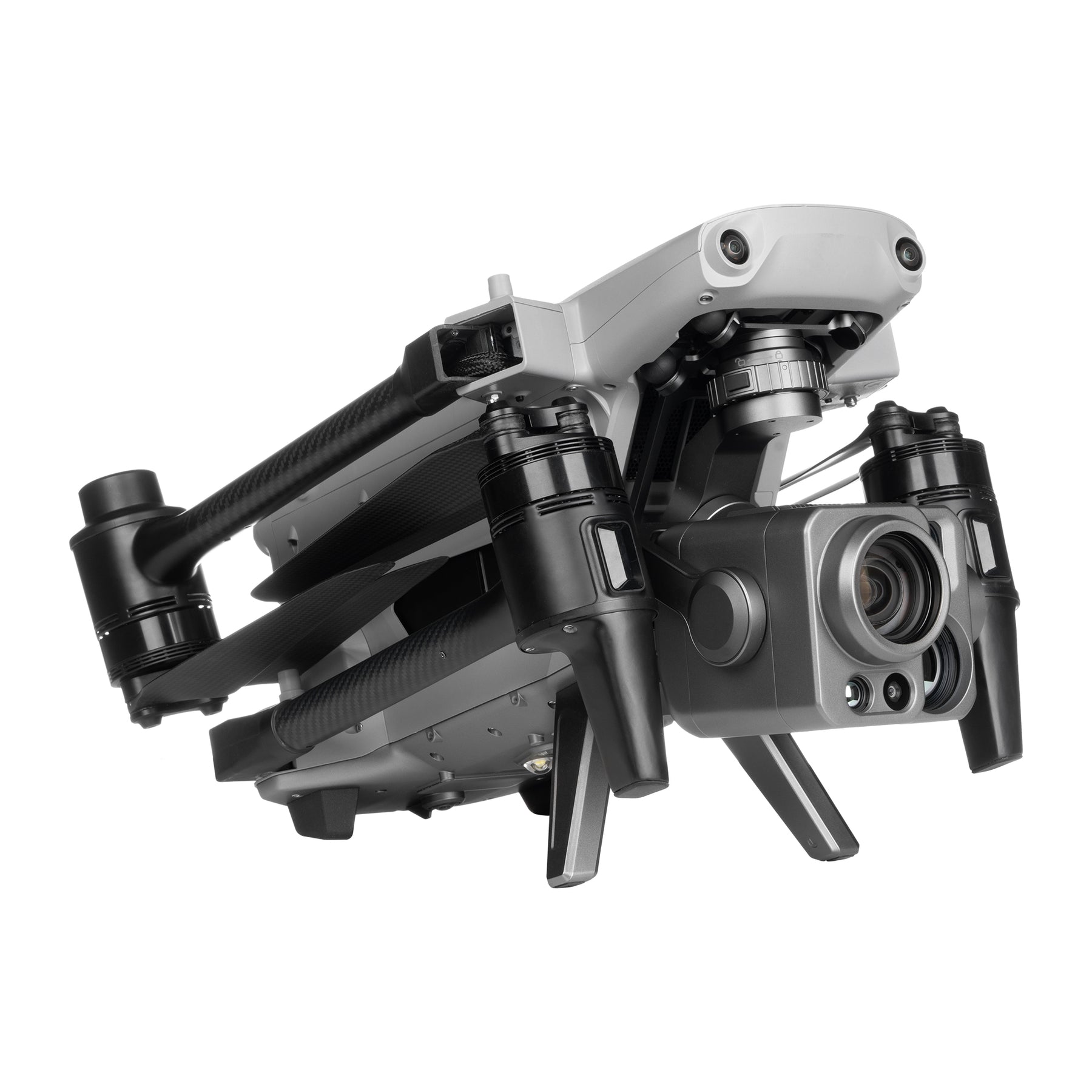

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide angle camera and a laser rangefinder.
Zoom Camera
8 MP
4K 35x optical zoom
560x hybrid zoom Ultra-sensitive ISO
supports up to a maximum of 160,000
Wide Angle Camera
48 MP
Aperture: F/2.8
DFOV: 84°
Equivalent focal length: 24mm
Dual Thermal Camera
640*512
56x hybrid zoom
13mm focal length wide angle thermal imaging
45mm focal length long range thermal imaging
Laser Rangefinder
Measurement range: 10-2000 meters
Measurement accuracy: ＜400m: +1m;
＞400m: D×0.3%
* where D represents the distance from the vertical
reflecting surface
Exceptional Anti-Interference Capability
Exceptional Anti-Interference Capability,Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.
Autonomous Flight
Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.
* This feature is pending future updates.
No Blind Spots,Ultimate Obstacle Avoidance
By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.
Platform Capabilities
Redefines proficiency with its robust platform and all weather design.
Protection Rating: IP55
Wind Resistance: 12m/s
Maximum Flying Altitude: 4500 meters
Operation Temperature: -20℃ to 50℃
*With high-altitude propeller
Multiple Payload Capability
The aircraft features multiple mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, and more.

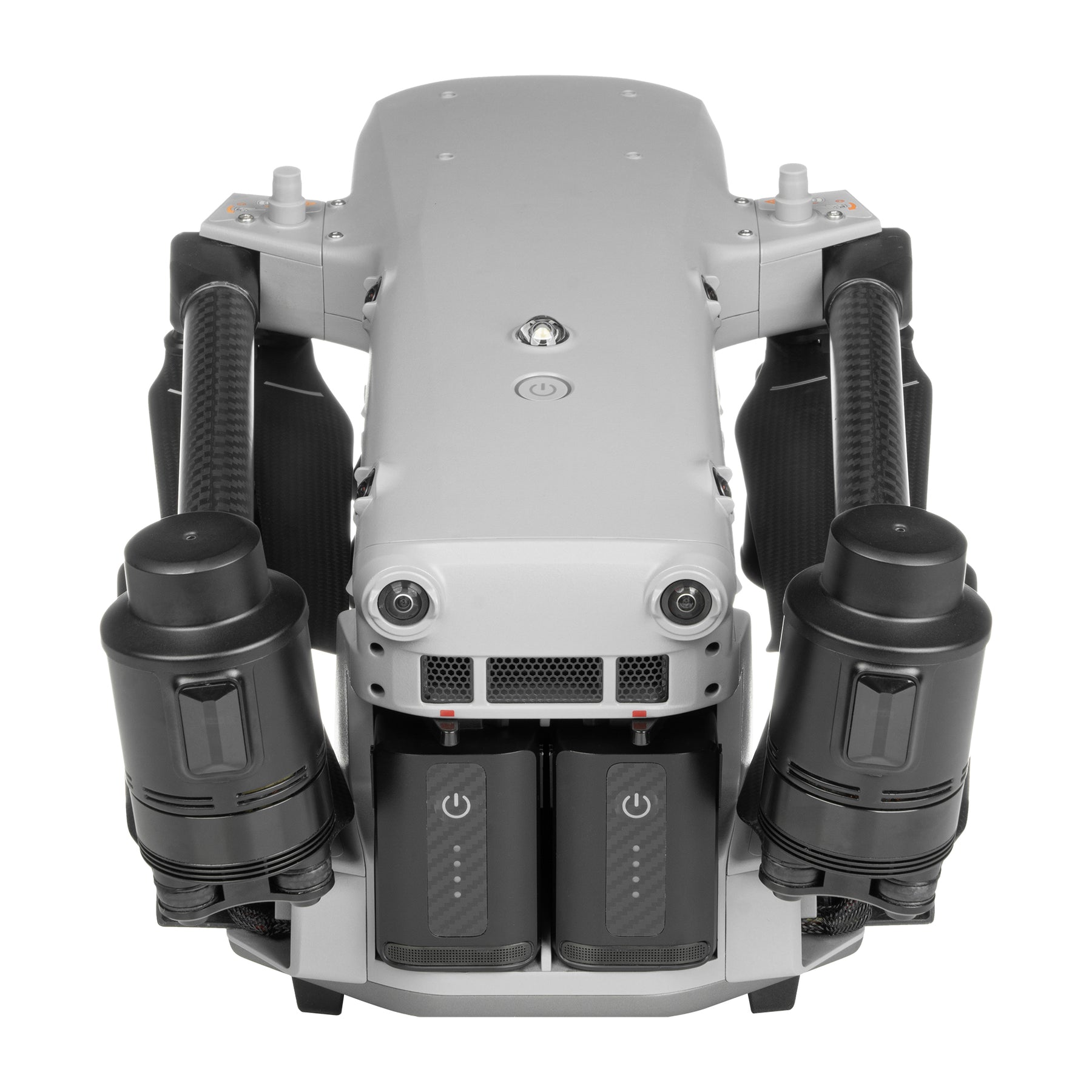

Hot-Swappable Batteries
Adopting a dual-battery redundant design, the flight time reaches 40 minutes, supporting hot-swappable batteries for seamless, efficient operations.
High-definition Transmission,
Performance Upgrade
With Autel Skylink 3.0, the system comes with 4 antennas, 4 Frequency bands, enabling a transmission distance of up to 15 kilometers. It supports auto frequency hopping on 900M/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities, featuring a high transmission of 64Mbps and low transmission latency.
15 kilometers
Image Transmission Distance
1080P/30FPS
Real Time Video Quality
900 MHz/2.4 GHz/5.2GHz/5.8 GHz
Frequency Bands*
* Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the Autel Alpha' mission capability.
Multiple Mission Types
Smart Assistive Features
Tripod
The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.
Data Security
Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.Encrypted Data Storage: It supports AES encryption for photos, videos, and flight logs, requiring a password input for access.
Autel SDK
"The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK / Payload SDK*
A well-designed software and hardware architecture enables developers to get started with ease, offering simplicity and convenience, and empowering the creation of exceptional UAV mobile application experiences.
