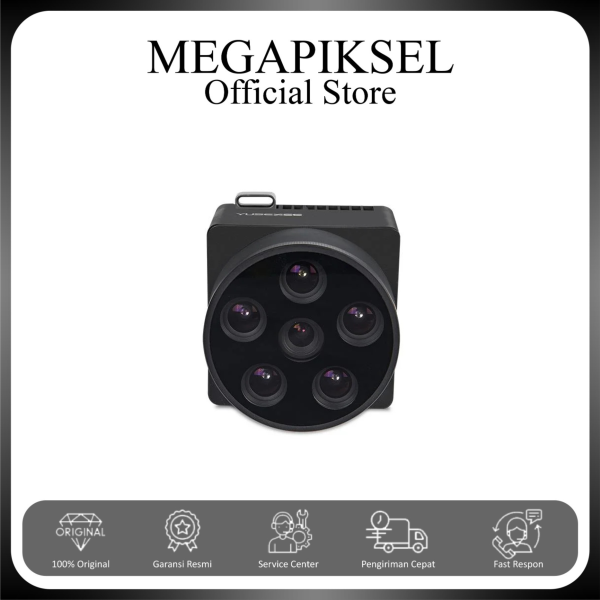

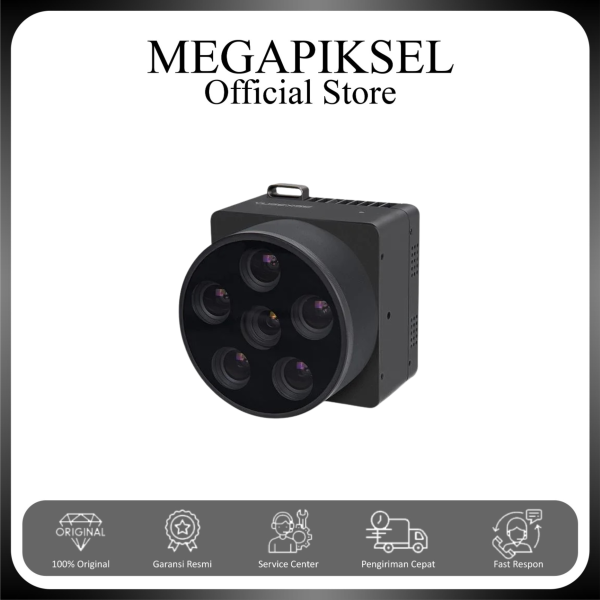

AQ600 is A professional multi-spectral camera for UAVs based on industry standards.It has five 3.2-megapixel multispectral channels and one 12.3megapixel RGB channel. For its hardware features, it has sapphire optical window, large aperture, low distortion, broadband transmission, all-glass lens and an aluminum alloy camera housing.In addition, AQ600 can carry out video-level spectral remote sensing detection, transmit spectral remote sensing video and output results in real time, which provides new technical means for precision agriculture, forestry monitoring, river monitoring, ecological protection, target recognition and other industrial applications.
Product parameters
| The index name | AQ600 |
| Band configuration | Five Multi-spectral bands and one RGB sensor |
| Target surface size | MS: 1/1.8″; RGB: 1/2.3″ |
| Effective pixels | MS: 3.2Mpx; RGB: 12.3Mpx |
| Shutter type | Global shutter/Shutter |
| Quantitative figures | MS: 12bit; RGB: 8bit |
| Viewing Angle | MS: 48.8°×37.5°; RGB: 47.4°×36.4° |
| GSD | MS: 5.28cm@h120m; RGB: 2.60cm@h120m |
| Image size | MS 109m×82m@h120m; RGB: 106m×79m@h120m |
| Spectral band | 450nm@35nm, 555nm@27nm,660nm@22nm, 720nm@10nm,840nm@30nm, RGB |
| Optical window | Sapphire optical window |
| Size | 79mm×79mm×75mm |

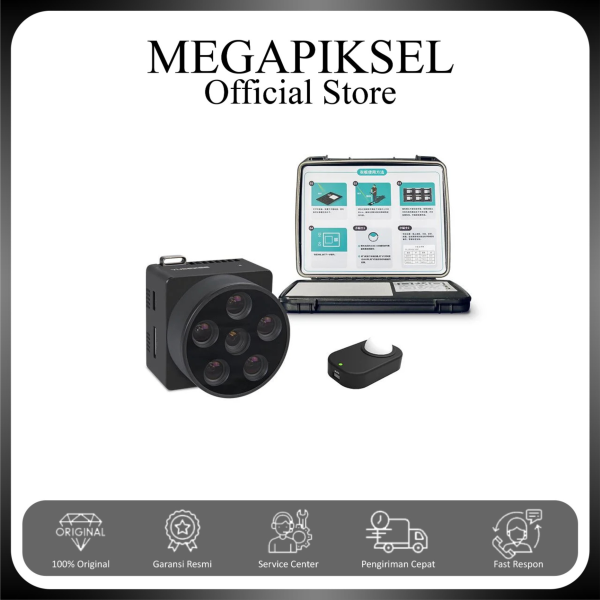

| Weight | 484g(Camera&DLS&WIFI Module) |
| Installation interface | 8×M3 |
| Power supply mode | 12V DC |
| Power consumption | 17W@12V (including DLS module) |
| Image format | MS:16bit original TIFF image & 8bit reflflectance JPG; RGB: 8bit JPG |
| Viedo format | MP4 |
| Storage medium | Standard with 128GB,A maximum of 2TB is supported |
| Parameter setting | WIFI (WEB interface access)/Ethernet/UART |
| Picture mode | Aircraft trigger ,Overlap trigger |
| Frequency of taking pictures | Picture mode:1Hz, Video mode:20Hz |
| Operating ambient temperature | -10ºC~+50ºC(Relative wind speed≥1m/s) |
| Storage Environment Temperature | -30ºC~+70ºC |
| Environmental humidity | RH(%)≤85%(Non condensation) |
| Product certification | CE,FCC,RoHS |
Note: The standard wavelength allows any combination of the following 17 wavelengths to be customized:410nm@35nm,450nm@35nm,490nm@25nm,530nm@27nm,555nm@27nm,570nm@32nm,610nm@30nm,650nm@27nm,660nm@22nm,680nm@25nm,720nm@10nm,720nm@15nm,750nm@10nm,780nm@13nm,800nm@35nm,840nm@30nm,900nm@35nm.
Typical application
By using vegetation factors such as NDVI and LAI, quantifying the consistency of vegetation canopy status at different spatial scales, and using characteristic spectra of vegetation in different health states to quantitatively assess vegetation growth,which can provide data support for irrigation, fertilization, plant protection, yield evaluation and other work.
Using spectrum and texture information to achieve efficient suppression of the environmental background of soil, withered grass and other objects and high-precision identification of color-change pine. By accurately extracting the location, spatial distribution and canopy area of color-changing pine trees, we can provide data support for the management of diseased trees.
By referring to the evaluation standard of surface black and smelly water, using the characteristic spectrum of black and smelly water to construct the classification index to achieve black and smelly water classification inversion and spatial information statistics. This technology can assist in analyzing the influence of domestic sewage and industrial wastewater on surrounding water, and finally help pollution source investigation and water environment assessment.
