OVERVIEW

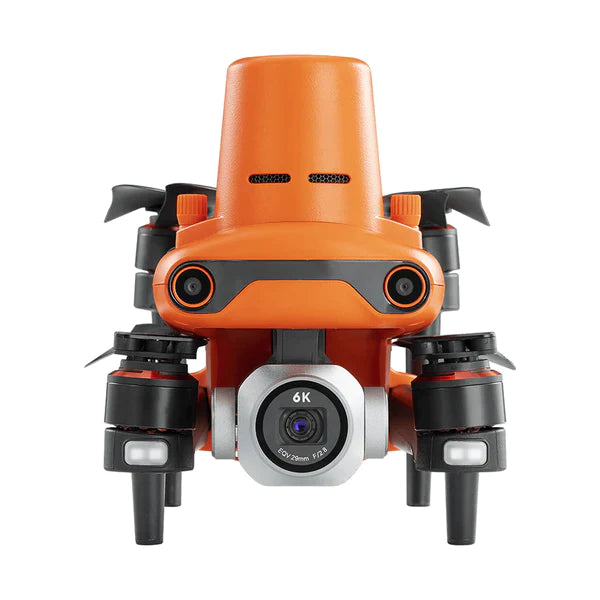

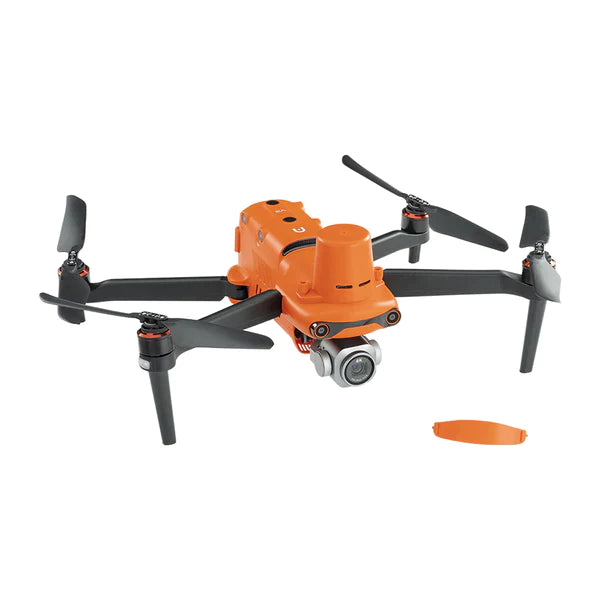

Autel EVO II Pro RTK V3

Autel EVO II Pro RTK V3 is an advanced drone model that offers an impressive range of features designed for surveying and mapping applications. This drone is equipped with advanced RTK technology that allows it to achieve highly accurate positioning with an accuracy of up to 1cm+1ppm (1.5cm+1ppm). This makes it ideal for use in a wide range of industries, including construction, agriculture, and mining.

Overall, the Autel EVO II Pro RTK V3 is an outstanding drone that delivers exceptional performance and versatility for surveying and mapping applications. Whether you are working in construction, agriculture, or any other industry that requires highly accurate data and detailed maps, the Autel EVO II Pro RTK V3 is the ideal solution for your needs.

Autel Robotics EVO II Pro RTK V3

1 inch CMOS Sensor

6K/30fps Videos

Surverying Mapping

Multi-NTRIP Profile Saving

15km Transmission Range

autel evo max 4t Hot-Swappable Batteries

360° Obstacle Avoidance

Dynamic Track 2.1

38 Minutes Flight Time

7.9 Smart Controller V3

Centimeter-Level Positioning

autel evo ii rtk v3 RTK Horizontal Positioning

RTK Horizontal Positioning
Accuracy: 1cm+1ppm

autel evo ii rtk v3 RTK Vertical Positioning

RTK Vertical Positioning
Accuracy: 1.5cm+1ppm

The EVO II RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing
Kinematic (PPK).
The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an
RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.

Autel Robotics EVO II rtk features

No GCP Required

EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

EVO II RTK Series V3 can connect to an NTRIP network

3rd Party Base Station Support

EVO II RTK Series V3 supports all NTRIP-compatible base stations.

autel evo ii rtk v3 supports all NTRIP-compatible base stations

Autel Explorer For Mapping

- Multi-NTRIP Profile Saving

  For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
- Photo Replication

  For repeatable missions, you can record the drone’s previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
- Multi-Battery Missions

  The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don’t have to manually input a new flight plan for every new location.

Capture Every Detail-EVO II RTK V3

EVO II Pro RTK V3 has high dynamic range and powerful low light performance, enabling users to capture clear detail sets with minimal distortion and noise.

1-Inch Ultra-Sensitive Sensor

The EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.
f/2.8 ~ f/11 Adjustable Aperture

Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

Zoom In For The Details

EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.

Optimized For Software Image Correction

EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

autel evo ii rtk v3 360° Obstacle Avoidance

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

Mission Planner

Rectangular and Polygon mission planners – Those are going to be great for anybody that’s dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you’re going to be able to do that in an autonomous fashion. Then you’re going to be able to take EVO II Pro RTK V3’s images and upload them to your 3D mapping

Rectangular Mission

Polygon Mission

Autel SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II RTK V3 chipset, expanding the possibilities for your most critical workflows.

9+ Miles

Do more because you can fly further away.
QHD

Incredible video resolution within a mile, meeting most common use cases.
2.4GHz / 5.8GHz / 900MHz

Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
* 900MHz is only applicable for FCC countries.

autel evo ii pro v3 skylink 2.0

Portable and Easy to Use

Compact Design

The EVO II RTK Series V3 folds up for ease of transport and deployment.

Trouble Free Daily Workflows

The EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.

autel evo ii rtk v3 Trouble Free Daily Workflows

- 27mph Max Wind Resistance

  EVO II’s Smaller Cross Section and powerful motors allows greater stability and control in all windy conditions.
- No Fly Zones*

  EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.
- 38 Minutes Flight Time

  Enjoy up to 38 minutes of flight time – 20%~30% more than the next leading competitor for more area coverage and longer missions.
- No Forced Updates**

  EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.

**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

Failsafe & Automatically Return Home

EVO 2 Pro RTK V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2 V3’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map’s flatness and angles to ensure an accurate and safe landing.

ATH (Auto Return Home)
Hover
Land Off

Autel Smart Controller V3

Smart Controller V3’s 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

7.9-Inch HD Touch Screen
-4 °F to 104 °F Temperature Range
2000 nits Maximum Brightness
IP43 Resistance

Broadcast with Live Deck 2

EVO II Pro RTK V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

- 1080P/60FPS Video Stream
- Three Auto-Switch Bands
- Transmission Range
- 5-Hour Battery Life
- IP43 Resistance

SPECS

Camera

Sensor	1″ CMOS Effective Pixels: 20 MP
Lens	FOV: 82° Equivalent focal length: 29 mm Aperture: f/2.8 – f/11 Focus range: 0.5 m to infinity
ISO Range	Video: 100-44000 Photo: 100-6400
Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
Zoom	1 ~ 16x (Max. 3x lossless zoom)
Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
Maximum photo size	54723648 (3:2) 54723076 (16:9) 3840*2160 (16:9)
Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max bitrate	80Mbps
Supported file system	FAT32/exFAT

Gimbal

Gimbal	3-axis stabilization
Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
Max control speed (Tilt)	300°/s
Angular Vibration Range	±0.005°

Aircraft

Takeoff Weight	1237g±0.5g（EVO II Pro RTK V3)
Max takeoff weight	4.41 lbs (1999 g)
*Size(LWH)*	9.15.15.6 inches; 230130143mm(folded); 18224.3 inches 457558143 mm(unfolded)
Wheelbase	15.63 inches (397 mm)

Maximum Takeoff Altitude	7000 m
Max ascent speed	8 m/s (Ludicrous)
Max descent speed	4 m/s (Ludicrous)
Max horizontal flight speed	20m/s (Ludicrous)
Max flight distance (no wind)	21 km
Max tilt angle	33° (Ludicrous)
Max angular velocity	120°/s
Max flight time (no wind)	36 min
Max hovering time (no wind)	32 min
Operating temperature range	14°F to 104°F (-10℃ ~ 40℃)
Maximum resistance to wind	27mph, 12 m/s (Take-off and landing)
Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
Transmission power	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
Image position compensation	The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Internal storage	8GB
SD storage	max. support 256GB (UHS-3 or Class 10)

GNSS

Single frequency high sensitivity GNSS	GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas）
Multi-frequency multi-system high-precision RTK GNSS	Frequency points used： GPS：L1/L2； GLONASS：L1/L2； BeiDou：B1/B2； Galileo：E1/E5 First positioning time:<50 s Positioning accuracy: vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

Sensing System (Obstacle Avoidance)

Sensing System	Omnidirectional Obstacle Sensing
Forward	Precision Measurement Range: 0.5-18 m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
Backward	Precision Measurement Range: 0.5-16 m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
Upward	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 65°, Vertical: 50°
Downward	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 100°, Vertical: 80°
Sides	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 65°, Vertical: 50°
Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Remote Controller and Image Transmission

Operating Frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
Transmission power(E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G ≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
Display screen	2048×1536 60fps
Battery	5800mAh
Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
Charging time	120 minutes
Internal Storage	ROM 128GB

Intelligent Flight Battery

Capacity	7100 mAh
Voltage	11.55 V
Max Charging Voltage	13.2 V
Battery Type	LiPo 3S
Energy	82 Wh
Net Weight	0.81 lbs (365 grams)
Charging Temperature Range	41°F to 104°F (5°C to 40°C)
Storage Temperature and Humidity	-10~30℃，65±20%RH
Recommended Storage Temperature	22-28℃
Max Charging Power	93W
Charging Time	90 minutes

Charger

Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage	13.2±0.1V
Rated power	66W

Multi-Charger

Voltage	13.2 V
Charging temperature range	5℃ to 45℃

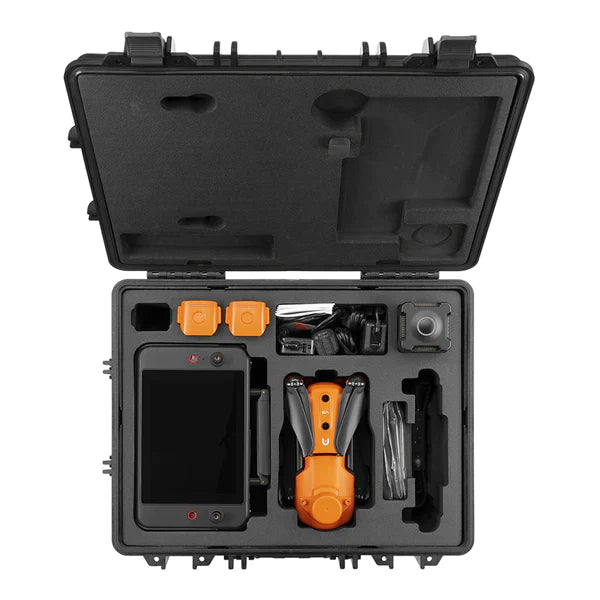

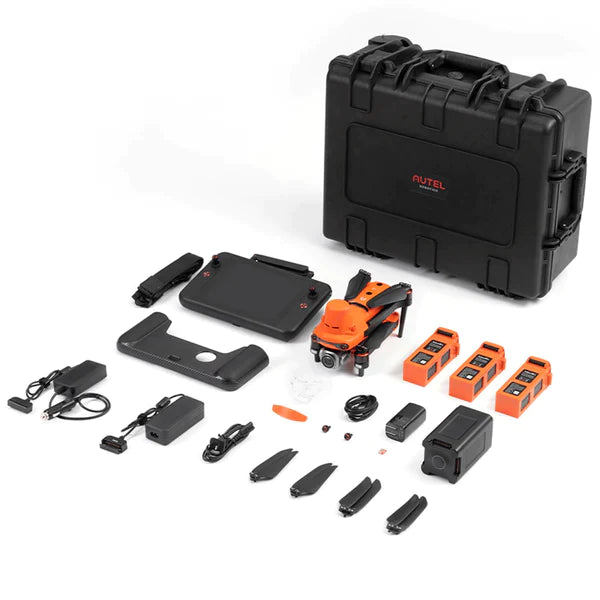

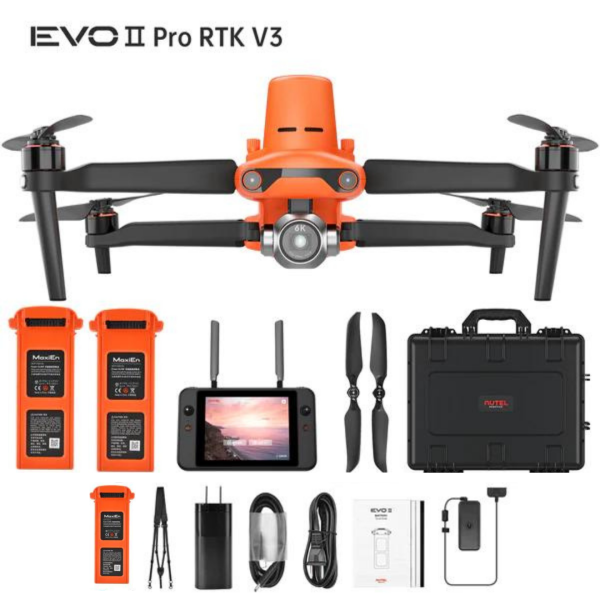

IN THE BOX

Autel EVO II Pro RTK V3 Package List

DOWNLOAD

Name	Download
EVO II RTK V3 Brochure – EN.pdf	Download_File
Specs For EVO II RTK Series V3 – .pdf	Download_File
Autel Smart Controller V3 Brochure	Download_File
Specs For Autel Smart Controller V3	Download_File
Autel Live Deck 2 Brochure	Download_File
Specs For Autel Live Deck 2	Download_File

Reviews

There are no reviews yet.

Be the first to review “EVO II Pro RTK V3”

EVO II Pro RTK V3

OVERVIEW

Autel EVO II Pro RTK V3

Centimeter-Level Positioning

No GCP Required

3rd Party Base Station Support

Autel Explorer For Mapping

Multi-NTRIP Profile Saving

Photo Replication

Multi-Battery Missions

Capture Every Detail-EVO II RTK V3

1-Inch Ultra-Sensitive Sensor

f/2.8 ~ f/11 Adjustable Aperture

Zoom In For The Details

Optimized For Software Image Correction

360° Obstacle Avoidance

Mission Planner

Autel SkyLink 2.0 Video Transmission

9+ Miles

QHD

2.4GHz / 5.8GHz / 900MHz

Portable and Easy to Use

Compact Design

Trouble Free Daily Workflows

27mph Max Wind Resistance

No Fly Zones*

38 Minutes Flight Time

No Forced Updates**

Failsafe & Automatically Return Home

Autel Smart Controller V3

Broadcast with Live Deck 2

SPECS

Camera

Gimbal

Aircraft

GNSS

Sensing System (Obstacle Avoidance)

Remote Controller and Image Transmission

Intelligent Flight Battery

Charger

Multi-Charger

IN THE BOX

Autel EVO II Pro RTK V3 Package List

DOWNLOAD

Reviews

Related products

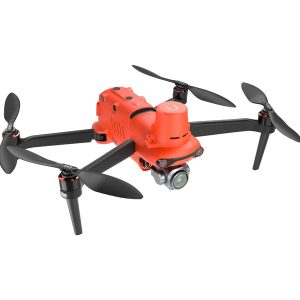

EVO II Pro V2 Rugged Bundle RTK

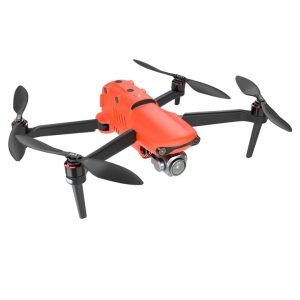

EVO II Pro V2 Rugged Bundle
